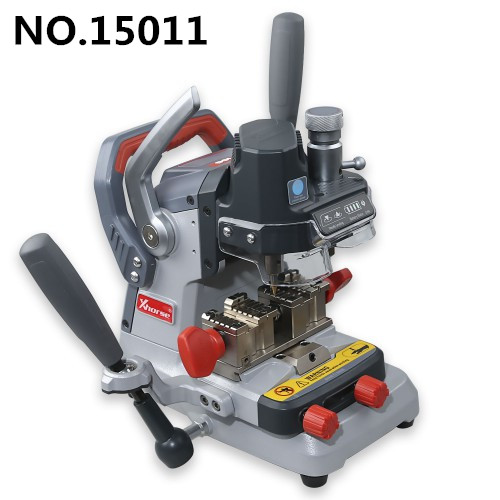

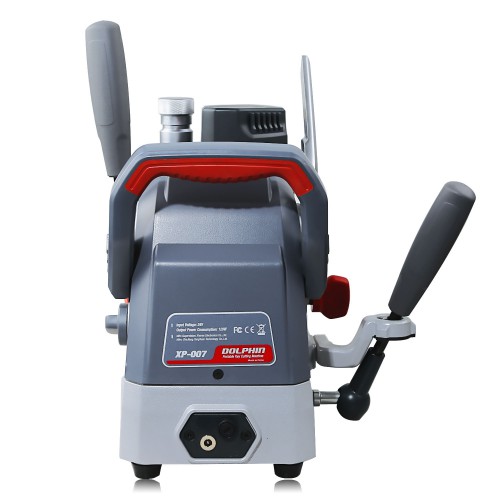

Xhorse Dolphin XP-007 Manually Key Cutting Machine for Laser/Dimple/Flat Keys
Precision Production
All aluminum body structure, Manufactured by Germany-made DMG CNC machine
High Efficiency Cutting 120W DC brushless motor, designed 2 switches for adjustment speed,
high efficiency cutting, support multiple materials of the key blank.
Precision Cutting
With micro-adjust probe, Spring preloading type fine-tuning structure,
ensure cutting accuracy；With this structure it can position the original
key in advance, in case the spring vibrating caused cutting error, good
for accuracy
Built-in Lithium Battery
Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions

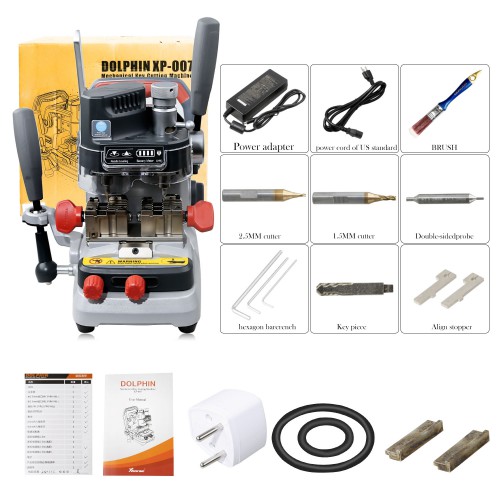

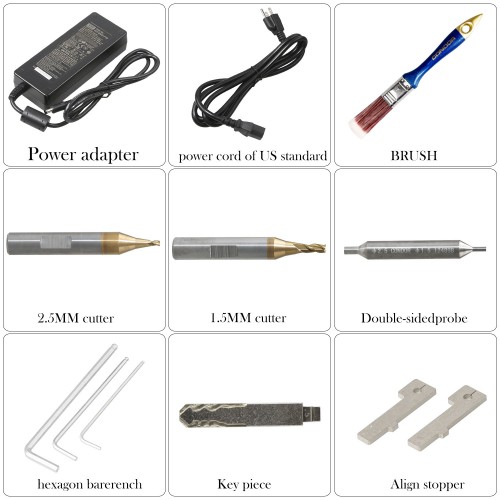

Clamps
Standard equipped multifunction clamp, support Sided, Track, Dimple and Tibbe keys
Technical service
One year warranty, free technical support, online service to provide remote control support
Xhorse Dolphin XP007 Specifications:
Charging Voltage: 12-18V
Battery Capacity: 64.75Wh
Consumption: 120W
Main motor speed: Highest:13000 RPM switch 1：7000 RPM switch 2：10000 RPM
Rated Torque: Switch 1:0.12 N.M Switch 2:0.16 N.M
Travel of Spindle: 25mm
Table Travel: Transverse 36mm Portrait 48mm
Working temperature: 0-50℃
Working Humidity: 0-90%
Net Weight: 11.5Kg
Gross Weight: 14Kg
Machine Dimension: 282*246.5*355mm
Package Dimension: 365*325*350,mm
|
