Support Online Module Programming.

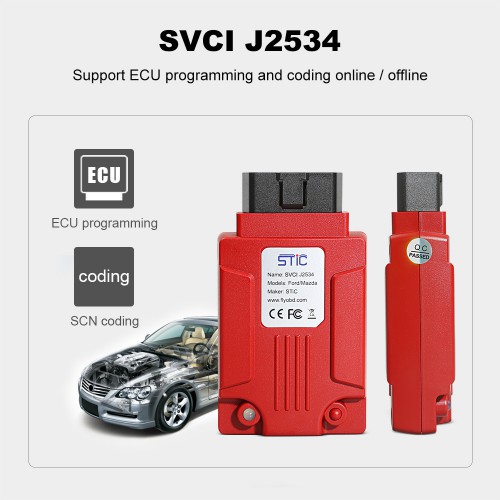

SVCI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2 .It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software. And it can be used as a ELM327 device also,support most of ELM327 software.

1. High speed host communication.(3 Mbps)
2. Stable host communication.(with RTS/CTS flow control)
3. Automatically register software and no virtual machine needed.
4. Online software update and keep software latest always.
5. Online firmware update.
6. USB 802.11 selectable host communication.

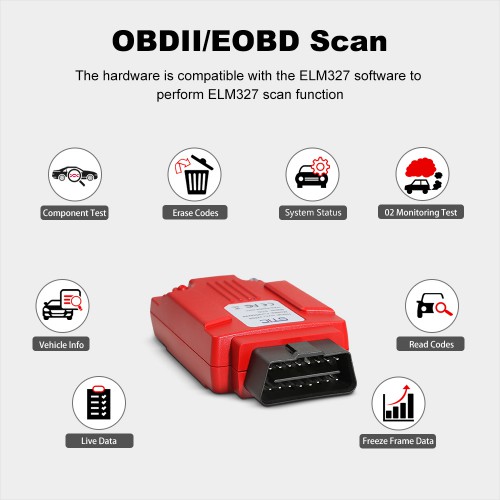

7. Support ELM327 software by one device.

SVCI J2534 Support Softwares:
J2534 Ford IDS V125
Mazda IDS V125
Toyota TIS V15.00.026
Land Rover/Jaguar SDD2 V160
Notice:
FORD and Mazda software cannot be installed on the same computer, please install them separately
Ford V125 Software download
Mazda V125 Software download

SVCI J2534 Support ELM327 Softwares:
ELMconfig
Forscan
FOCCCUS
FF2


SVCI J2534 Support Protocols:
ISO9141 IS014230
J1850 VPW
J1850 PWM(Ford SCP)
IS011898 HS(500K BPS)
IS011898 MS(125K BPS)
IS015765 HS(500K BPS)
IS015765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal)
KWP1281
J2819(TP2.0)


SVCI J2534 Specifications:

L*W*H:                                  76mm*54mm*22mm
Environmental:                      -20℃-45℃(-4℉-113℉) at 15% to 85%
Voltage Requirements:         8-32V DC,10 mA(max),0.6W @ 12V DC non-condensing
Vehicle Connection:              Molded DLC3(OBDII-16)
